MantelMount MM815 · MM815 Motorized Drop Down & Swivel TV Mount

Model MM815

Features Include: RF REMOTE CONTROL: No need to point at a receiver with the included RF remote. OPTIONAL RECESSIBLE HOUSING: Conceals the lifting arm and electronics in the raised position. Can be recessed for 1.75” flush-to-wall installations (RB100 accessory required) VISUAL TEMPERATURE SENSOR: Height adjustable heat sensor changes to a Red color at temperatures above 110° F to warn users if the fireplace is too hot for the safety of electronics. SOFT & HARD TRAVEL STOPS: Vertical & Horizontal travel limits configured through both software and hardware provide a virtual safety shield that prevents the TV from touching the wall or mantel. Specs: 26" Vertical Travel Distance 30° Left or Right Swivel RB100 1.8" Flush-To-Wall Recess Box accessory available (to recess the MM815 requires purchasing the RB100 Recess Box)

Current catalog price

$699.95

Verified 10/27/2026 · Price validity through 11/4/2026

Mount purchase requires service.

TV mount sales must be paired with a TV or paid TV installation in TVS’s standard local service area. We do not deliver TV mounts on their own.

MantelMount installation adds $79

Choose a verified fitting MantelMount in the guided TV purchase. Installation adds $79 per TV to the normal TV-size installation and applicable wall-surface charge; hardware is separate. TV fit, mounting surface, fireplace heat and clearance requirements must still be met. Structural work is not included.

Choose a TV and configure installation

Hardware alone does not include installation. Use the guided TV purchase for verified fit and itemized installation, including the additional $79 labor per MantelMount.

Specifications

Mount style: Motorized pull down
Supported TV size: 45–90″
Maximum TV weight: 115 lb
VESA patterns: Not specified by manufacturer

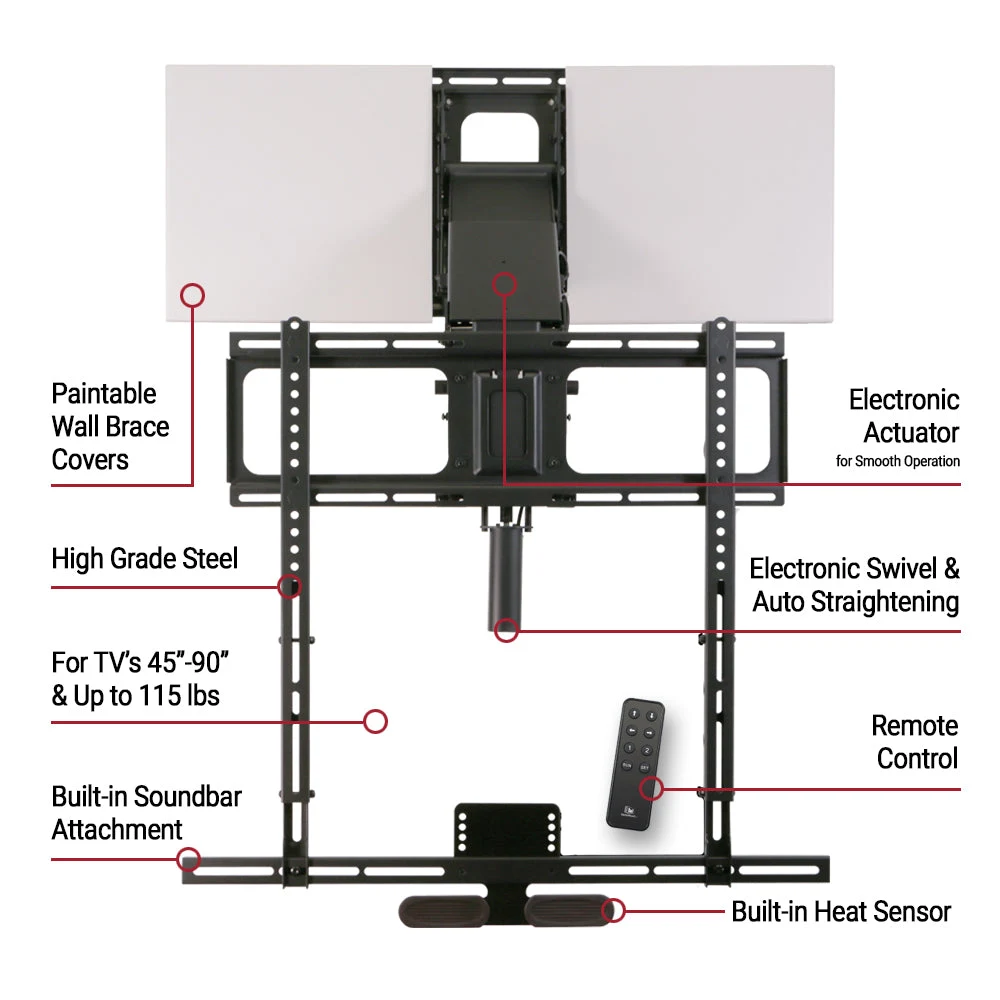

Manufacturer detail: AUTOMATIC DROP & SWIVEL: Patented, proprietary software and precision electronic actuators lowers and swivels the TV quickly and automatically through the use of 2 Memory presets on the remote control.

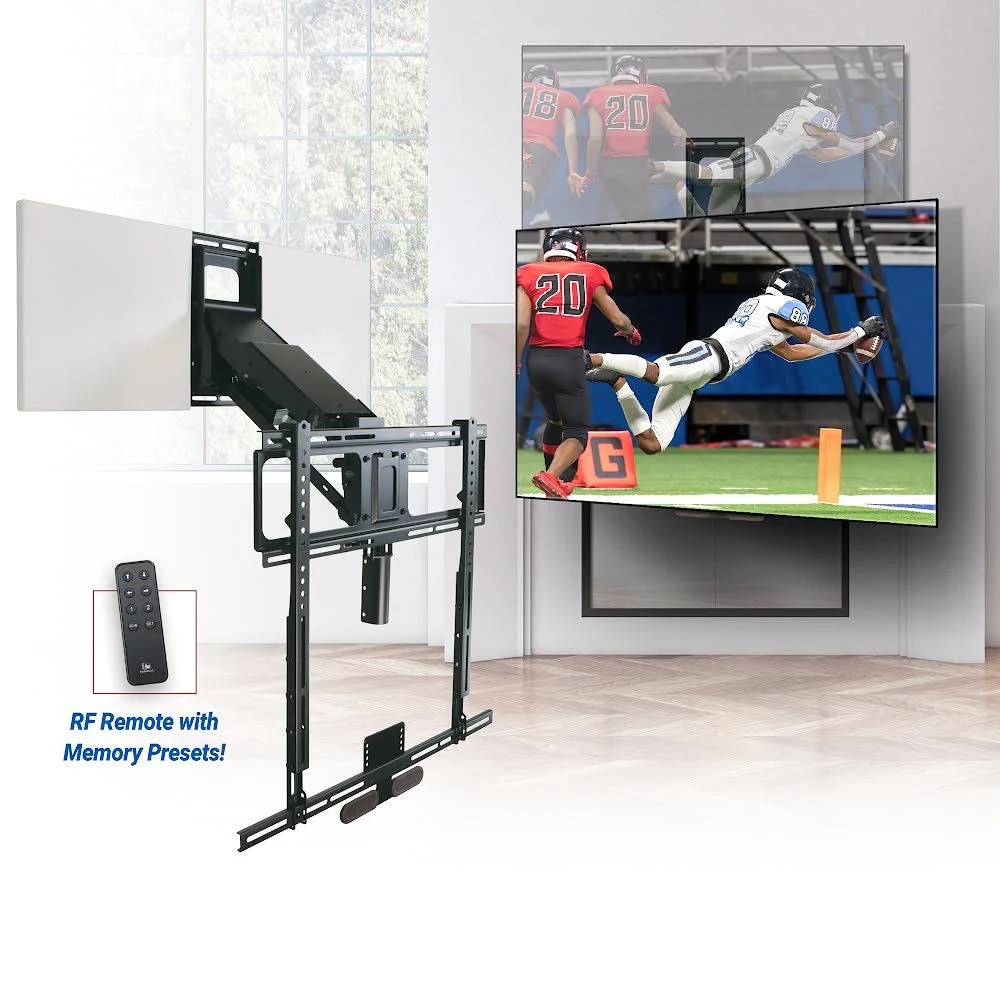

Manufacturer detail: RF REMOTE CONTROL: No need to point at a receiver with the included RF remote.

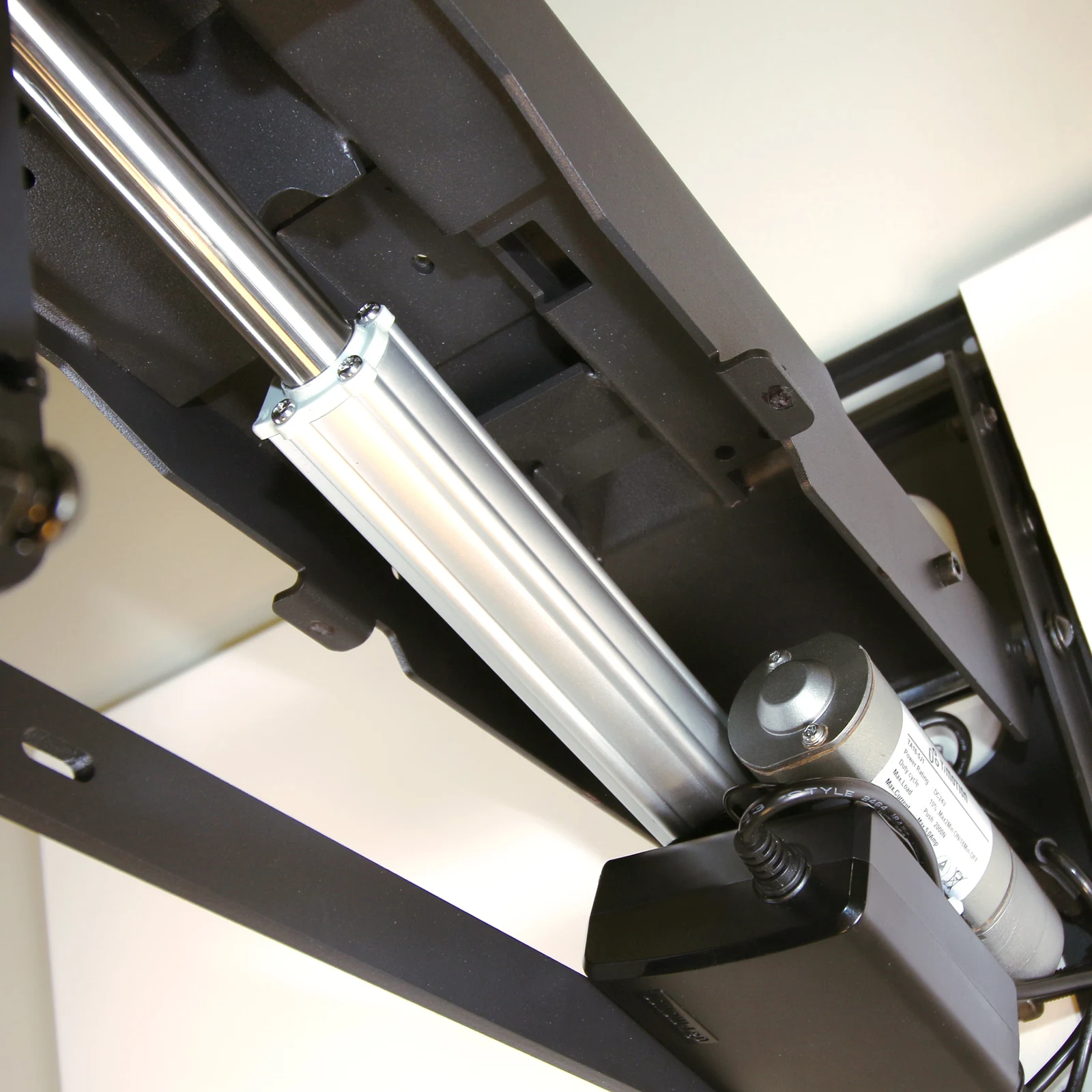

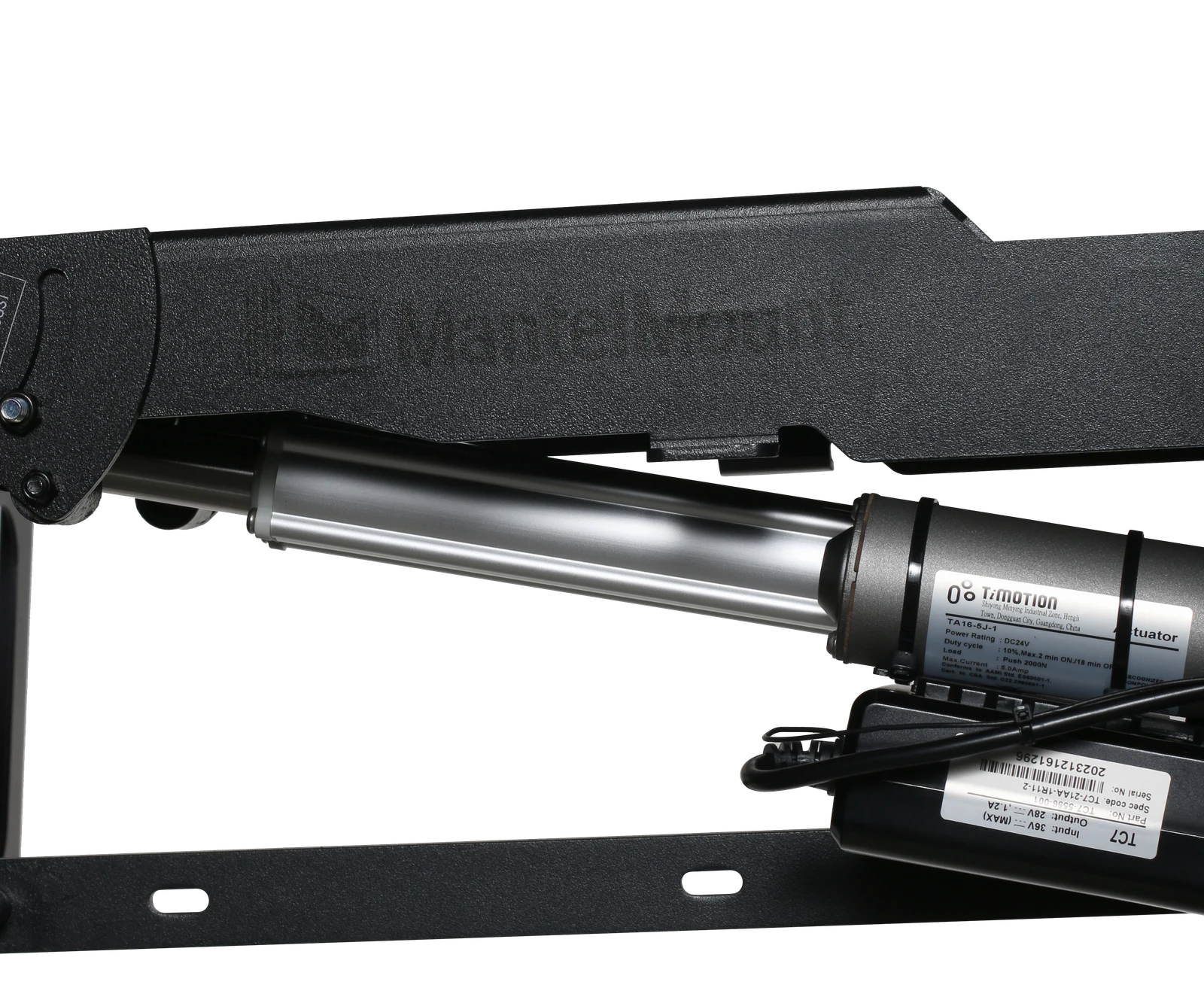

Manufacturer detail: SILENT OPERATION: Custom electronic actuators allow for smooth, barely audible movement.

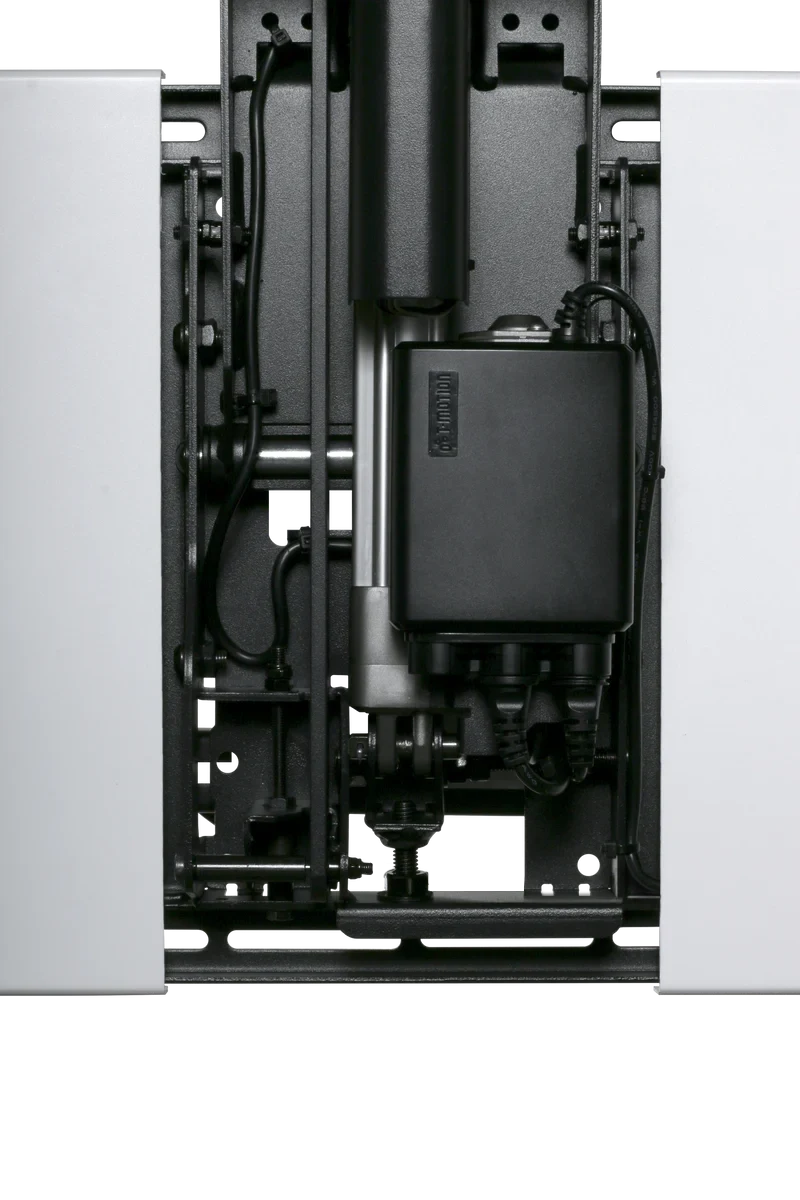

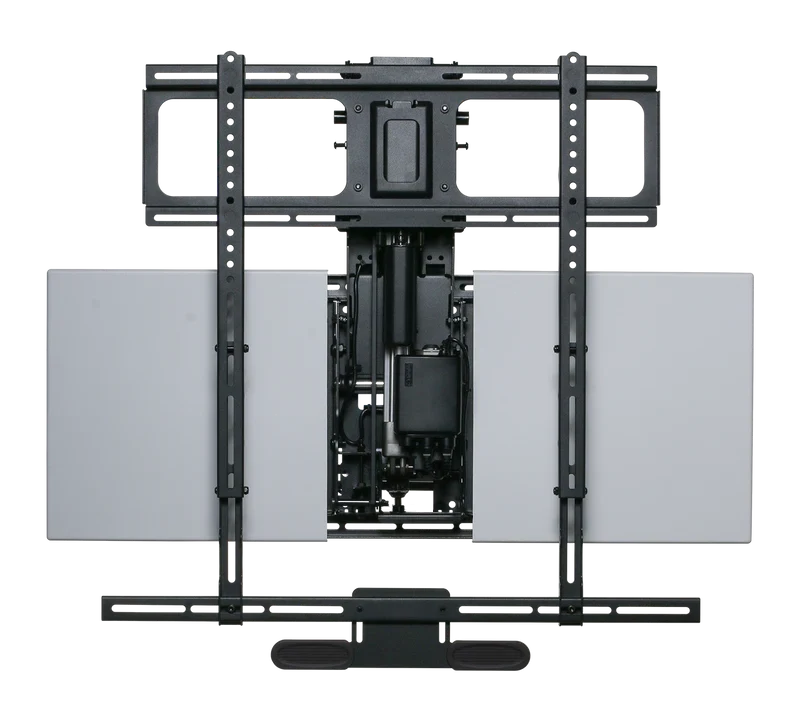

Manufacturer detail: OPTIONAL RECESSIBLE HOUSING: Conceals the lifting arm and electronics in the raised position. Can be recessed for 1.75” flush-to-wall installations (RB100 accessory required)
Manufacturer detail: VISUAL TEMPERATURE SENSOR: Height adjustable heat sensor changes to a Red color at temperatures above 110° F to warn users if the fireplace is too hot for the safety of electronics.
Manufacturer detail: SOFT & HARD TRAVEL STOPS: Vertical & Horizontal travel limits configured through both software and hardware provide a virtual safety shield that prevents the TV from touching the wall or mantel.
Manufacturer detail: PATENTED CENTERING CAMS: Centering Cams automatically swivels the TV to center while raising to avoid permanent obstacles.

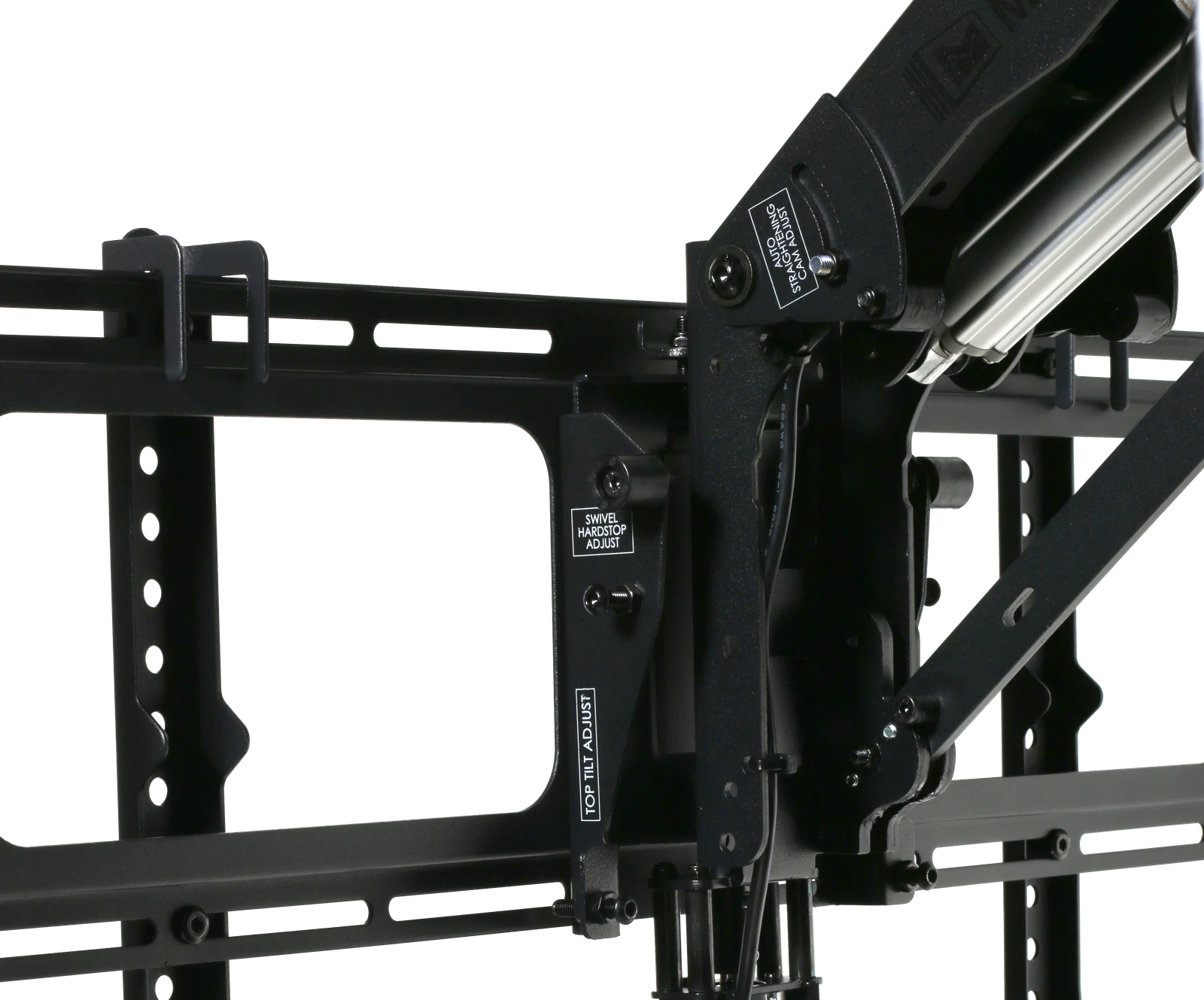

Manufacturer detail: SWIVEL SAFETY CLUTCH: Friction clutch that Automatically disengages during Horizontal movement to avoid damage if the mount swivels into an object.
Manufacturer detail: TILT ADJUST: Fine tune the tilt to keep the perfect angle.
Manufacturer detail: POST-INSTALLATION LEVELING: Allows for screen position refinement after the mount is installed.
Manufacturer detail: PAINTABLE WALL PLATE COVERS: Paintable to match your wall color.
Manufacturer detail: RB100 1.8" Flush-To-Wall Recess Box accessory available (to recess the MM815 requires purchasing the RB100 Recess Box.)
Manufacturer detail: NOTE: This product is not advised for outdoor usage.

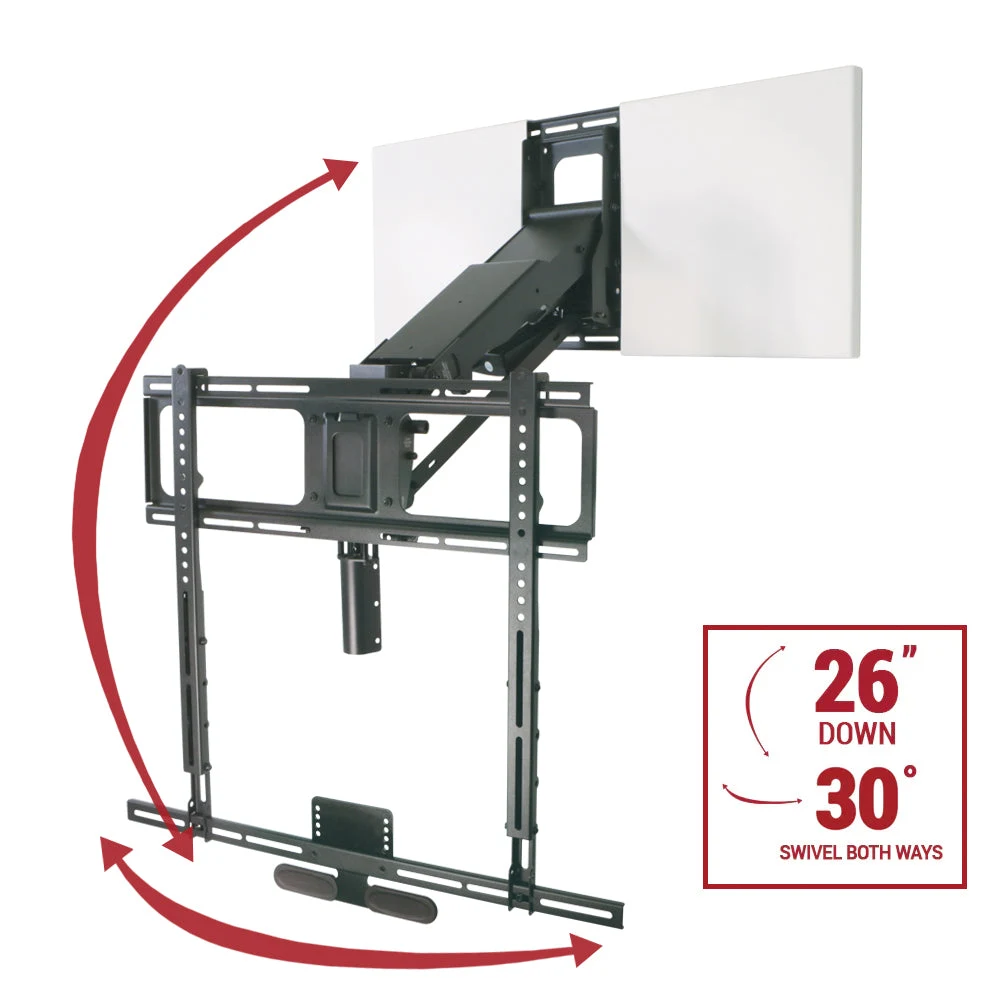

Manufacturer detail: 26" Vertical Travel Distance
Manufacturer detail: 30° Left or Right Swivel
Manufacturer detail: RB100 1.8" Flush-To-Wall Recess Box accessory available (to recess the MM815 requires purchasing the RB100 Recess Box)
Manufacturer detail: The All-New MM815 Motorized Drop Down & Swivel TV Mount offers motorized and programmable remote control convenience, creating a premium entertainment experience.
Manufacturer detail: MM815 Specs:
Manufacturer detail: Maximum Clearance: 16" Deep Mantel
Manufacturer detail: 26 inches of vertical drop
Manufacturer detail: 30 degrees swivel left or right
Manufacturer detail: 5.1" flush-to-wall
Manufacturer detail: Weight capacity: 20-115 lbs

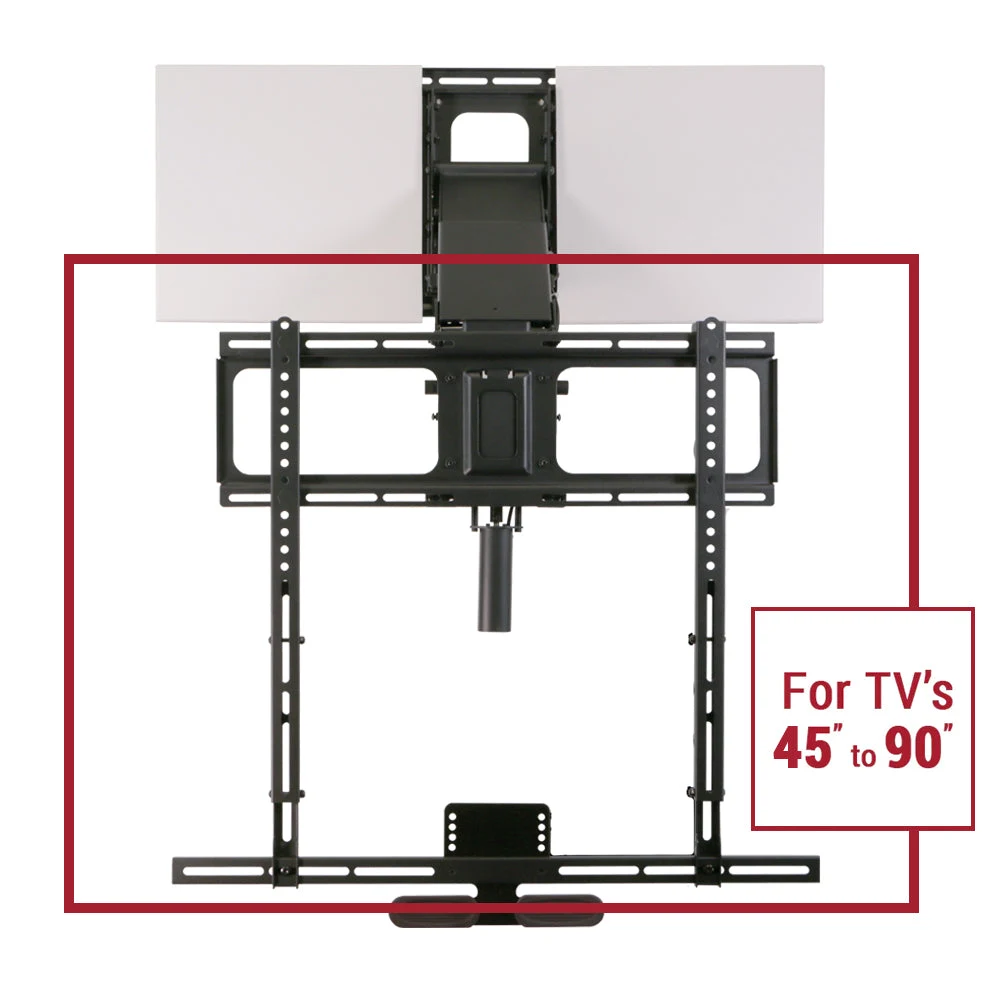

Manufacturer detail: TV size: 45"-90”
Manufacturer detail: VESA: 200 x 200 (min), 600 x 600 (max)
Manufacturer detail: MM815 Dimensions Diagram
Manufacturer detail: MM815 Dimensions Diagram w/RB100

Included parts

For included-parts information, consult the manufacturer's exact-model documents in the Documents section below.

Restrictions and fit notes

Read the exact-model manual for TV weight, VESA, mantel clearance and wall restrictions.
Manufacturer TV weight range: 20–115 lb. Minimum TV weight applies.
Guided TV mounting adds a $79 MantelMount installation surcharge to the normal size and surface charges. Hardware is separate. Verify exact TV fit, wall structure, mantel clearance and heat restrictions; no appointment or structural work is included.

Manufacturer documents

MM815 Sales Sheet

Connect hardware to installation.

Choose customer-owned mount installation alongside your TV in the shared cart. MantelMount installation is reviewed as a custom estimate, while its hardware may be purchased with a TV.

Review shared cart

Specifications are manufacturer information, not a fit guarantee. TVS evaluates the exact TV and installation conditions before confirming a purchase or install.
