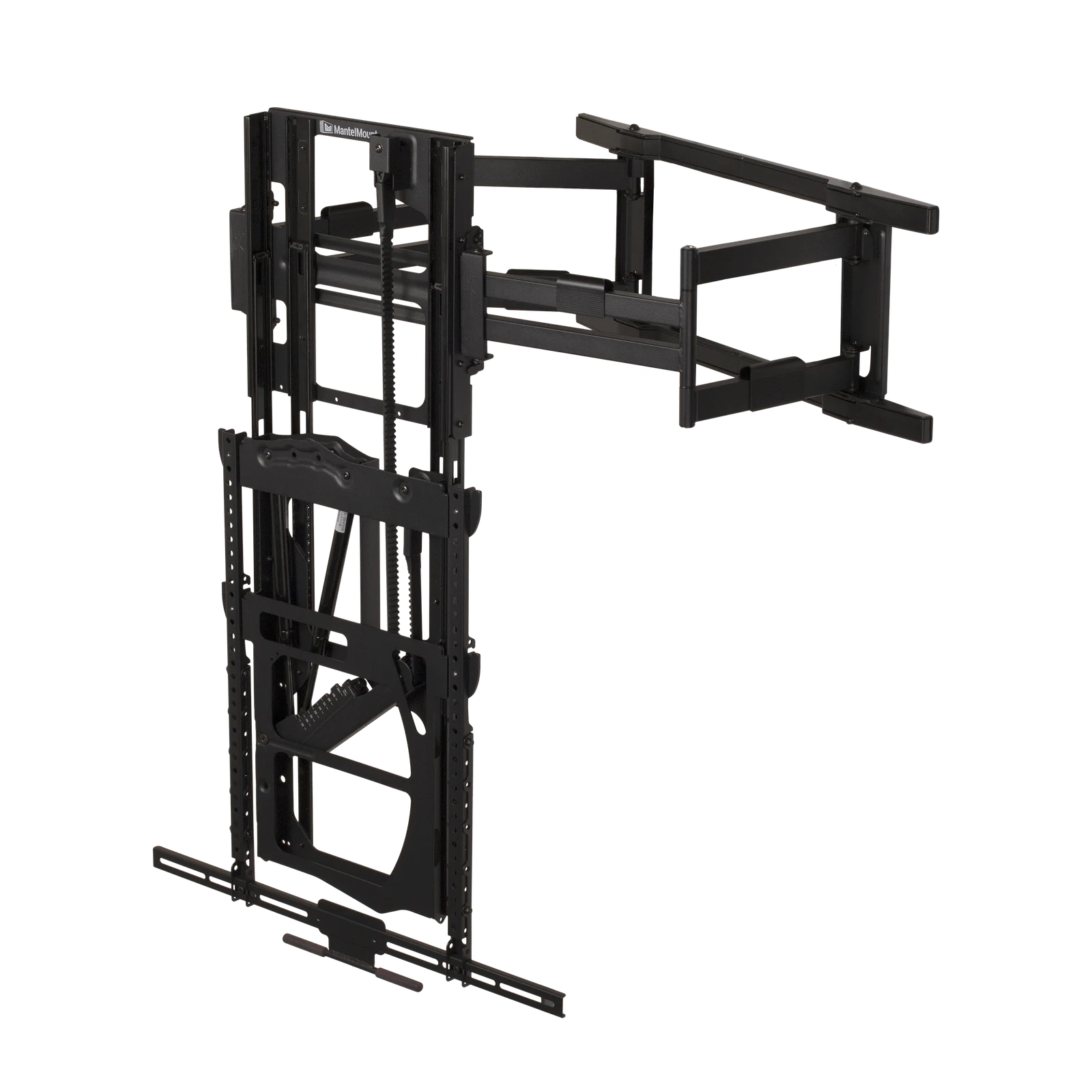

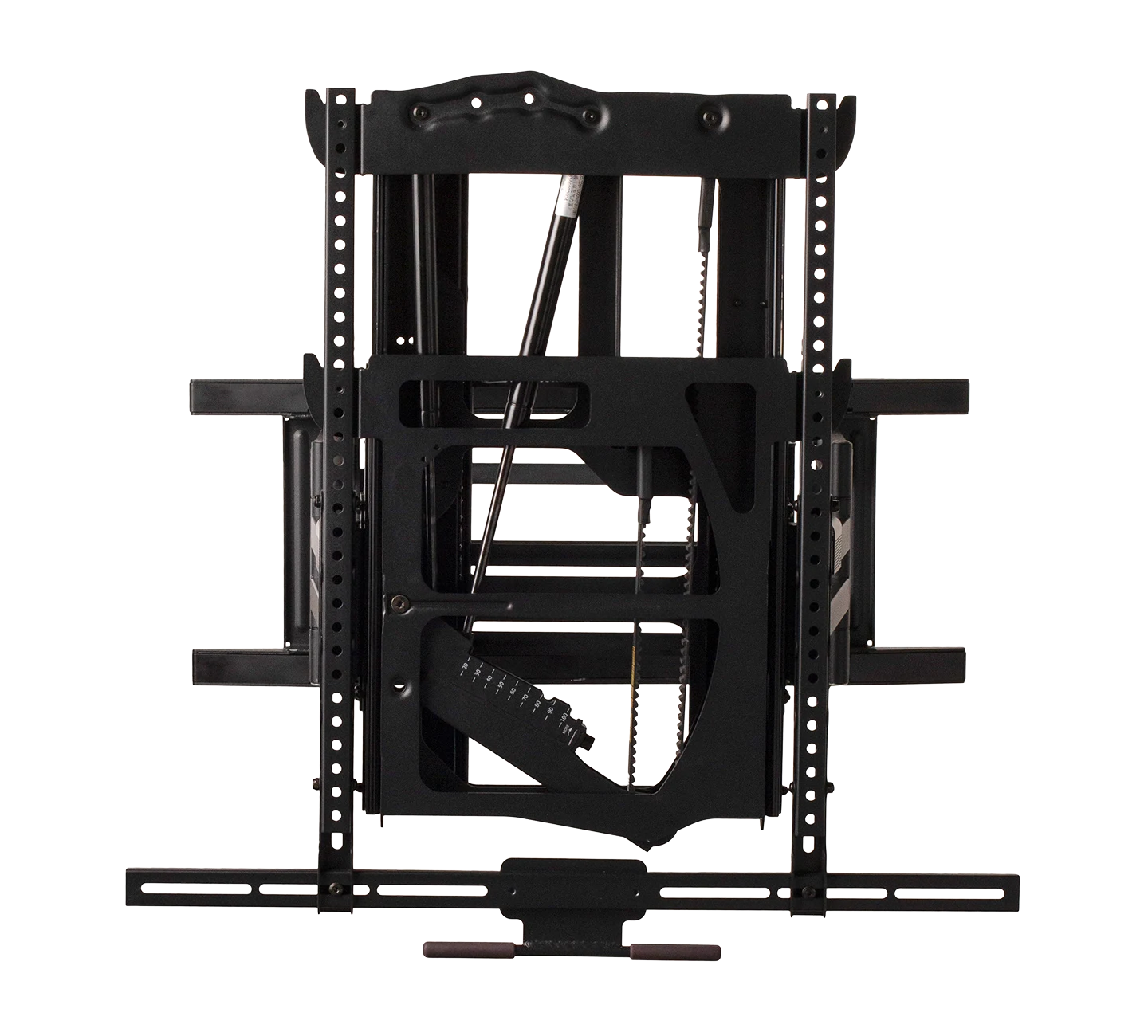

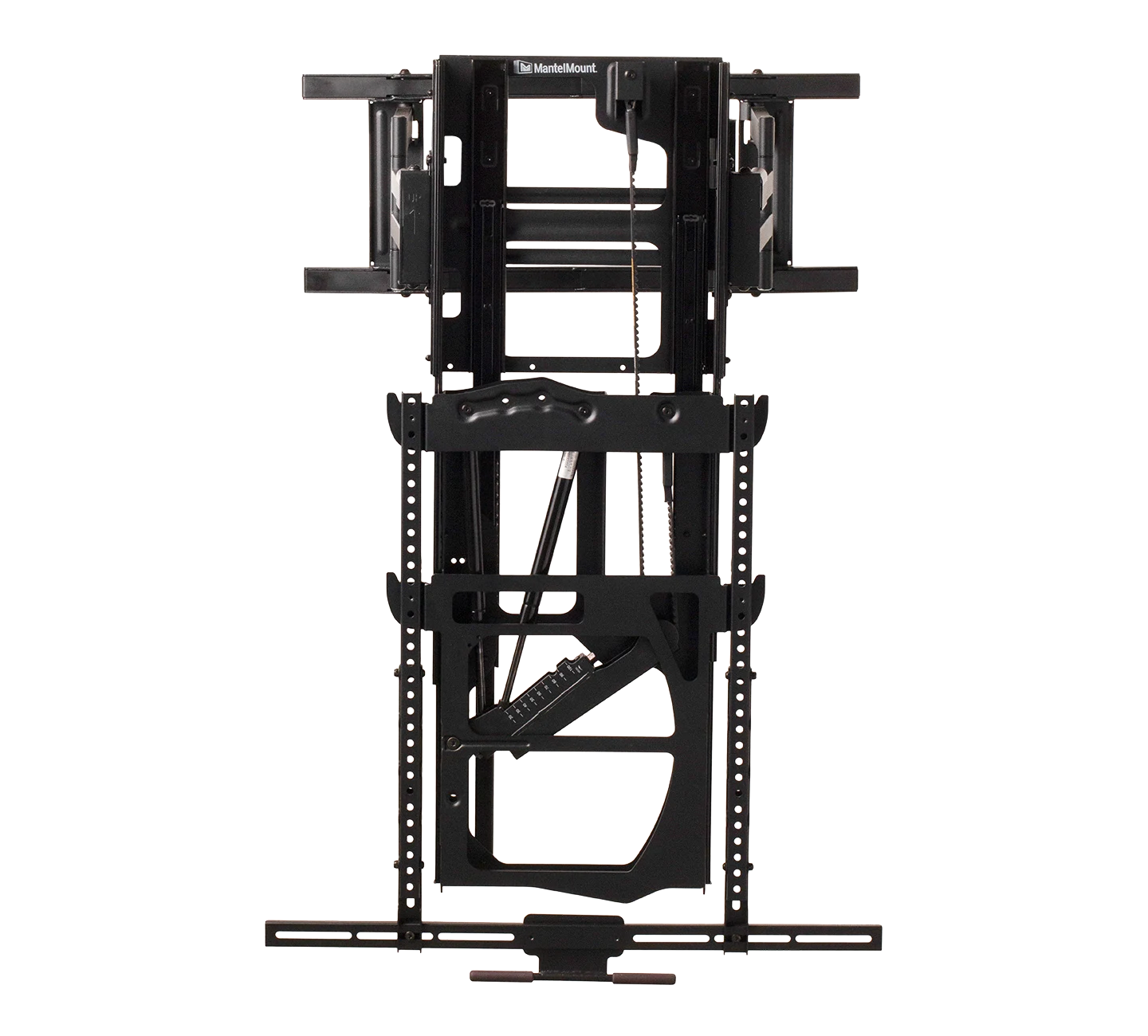

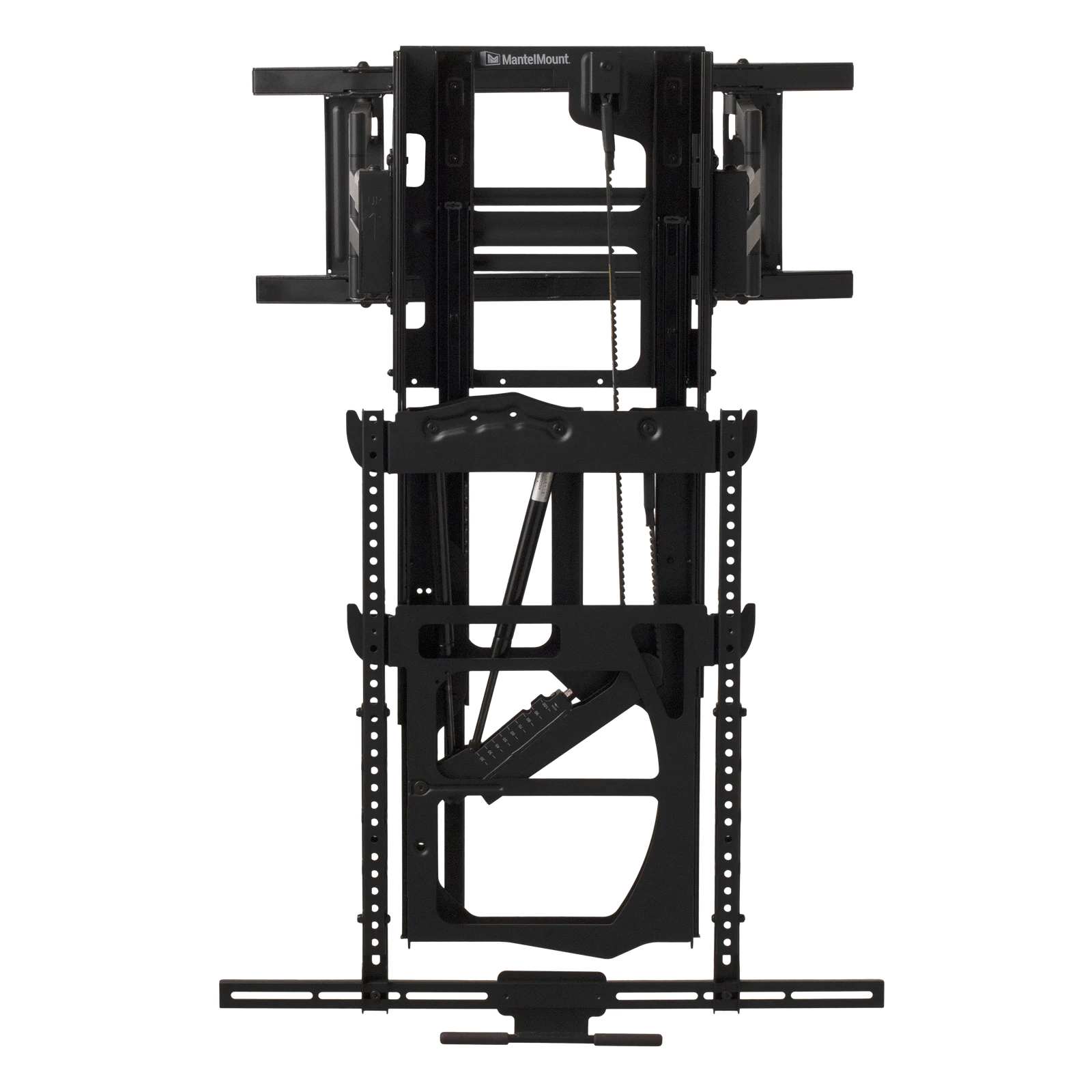

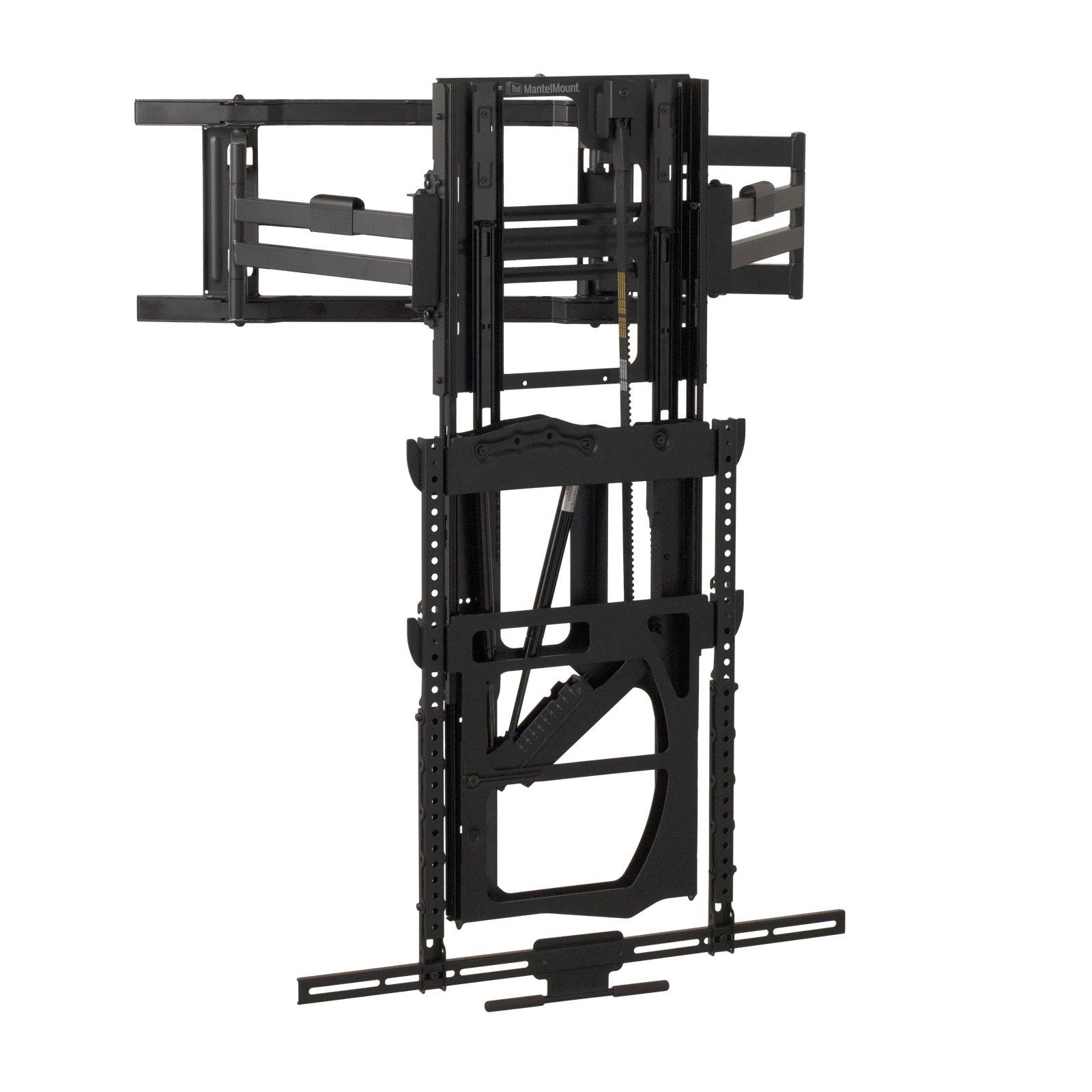

MantelMount MM-MAX1 · NEW! MAX1 Full-Range Motion TV Mount

Model MM-MAX1

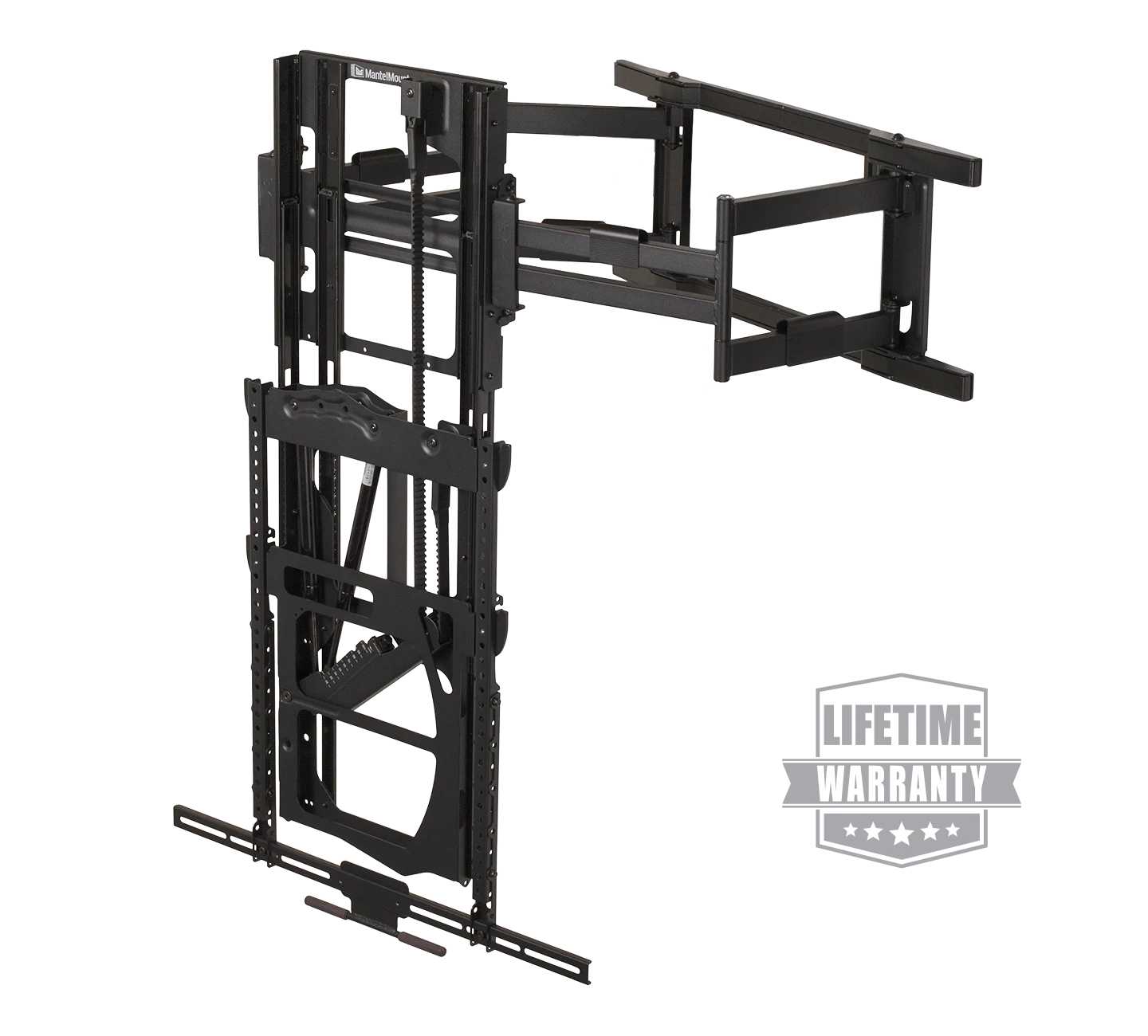

The revolutionary MAX1 offers unmatched positioning flexibility and max load capacity up to 90 lbs. Offer your customers all the benefits of a traditional full-motion mount combined with up to 29" of independent vertical travel! The MAX1 offers our closest flush to wall distance in a non-recessed application that can position the back of the TV just 3" off the wall. MAX1's clearance requirements are simplified when mounting a TV above obstructions such as a fireplace mantel - as little as 2" clearance required! This innovation creates a new standard in the "full range motion" mount category, ensuring the TV is always at the perfect eye level and viewing angle. Plus with its ability to handle up to 90 lbs., the MantelMount MAX1 offers robust support for TV's up to 86" or 90 lbs.

Current catalog price

$599.95

Verified 10/27/2026 · Price validity through 11/4/2026

Mount purchase requires service.

TV mount sales must be paired with a TV or paid TV installation in TVS’s standard local service area. We do not deliver TV mounts on their own.

MantelMount installation adds $79

Choose a verified fitting MantelMount in the guided TV purchase. Installation adds $79 per TV to the normal TV-size installation and applicable wall-surface charge; hardware is separate. TV fit, mounting surface, fireplace heat and clearance requirements must still be met. Structural work is not included.

Choose a TV and configure installation

Hardware alone does not include installation. Use the guided TV purchase for verified fit and itemized installation, including the additional $79 labor per MantelMount.

Specifications

Mount style: Pull down
Supported TV size: 55–86″
Maximum TV weight: 90 lb
VESA patterns: Not specified by manufacturer

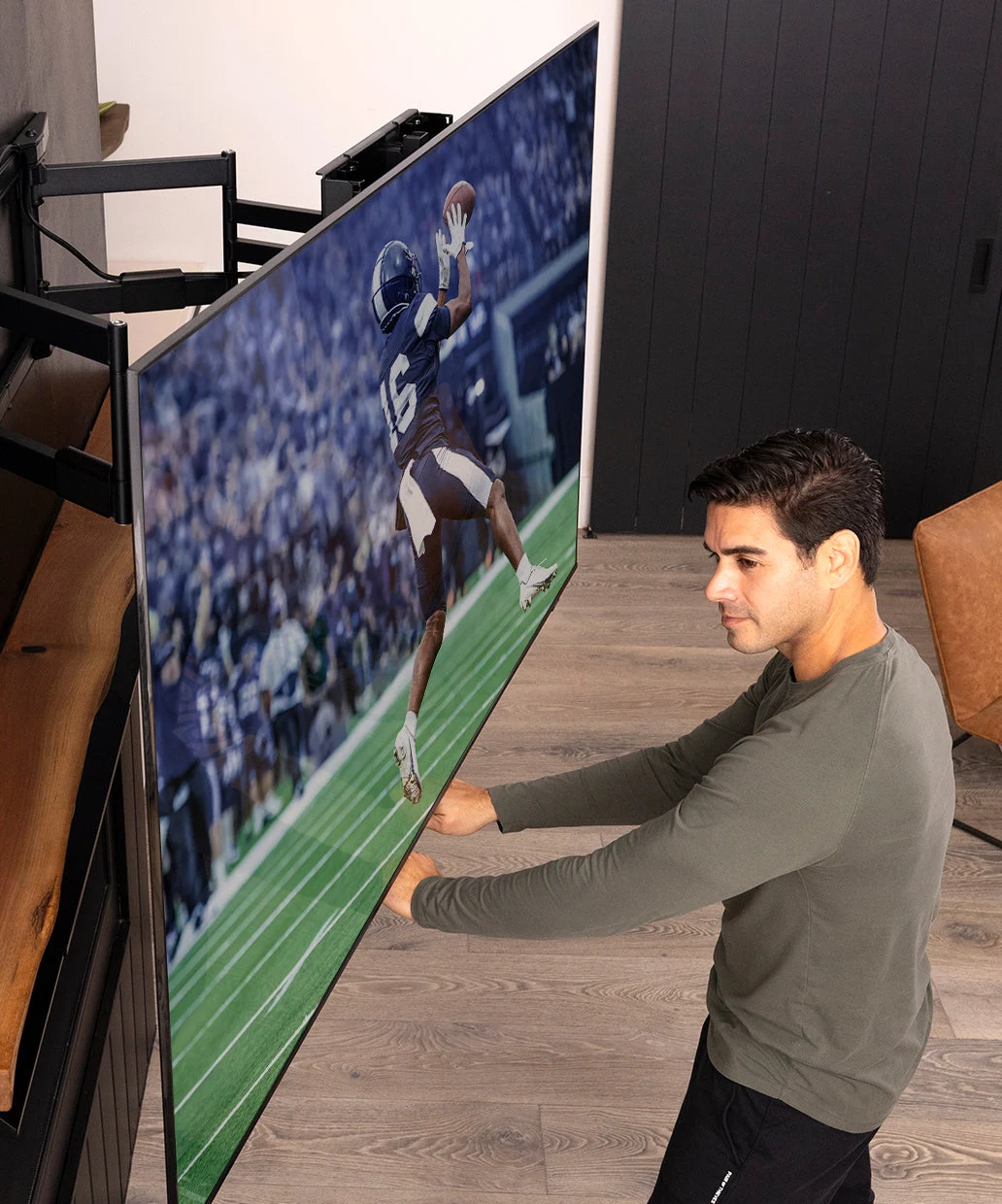

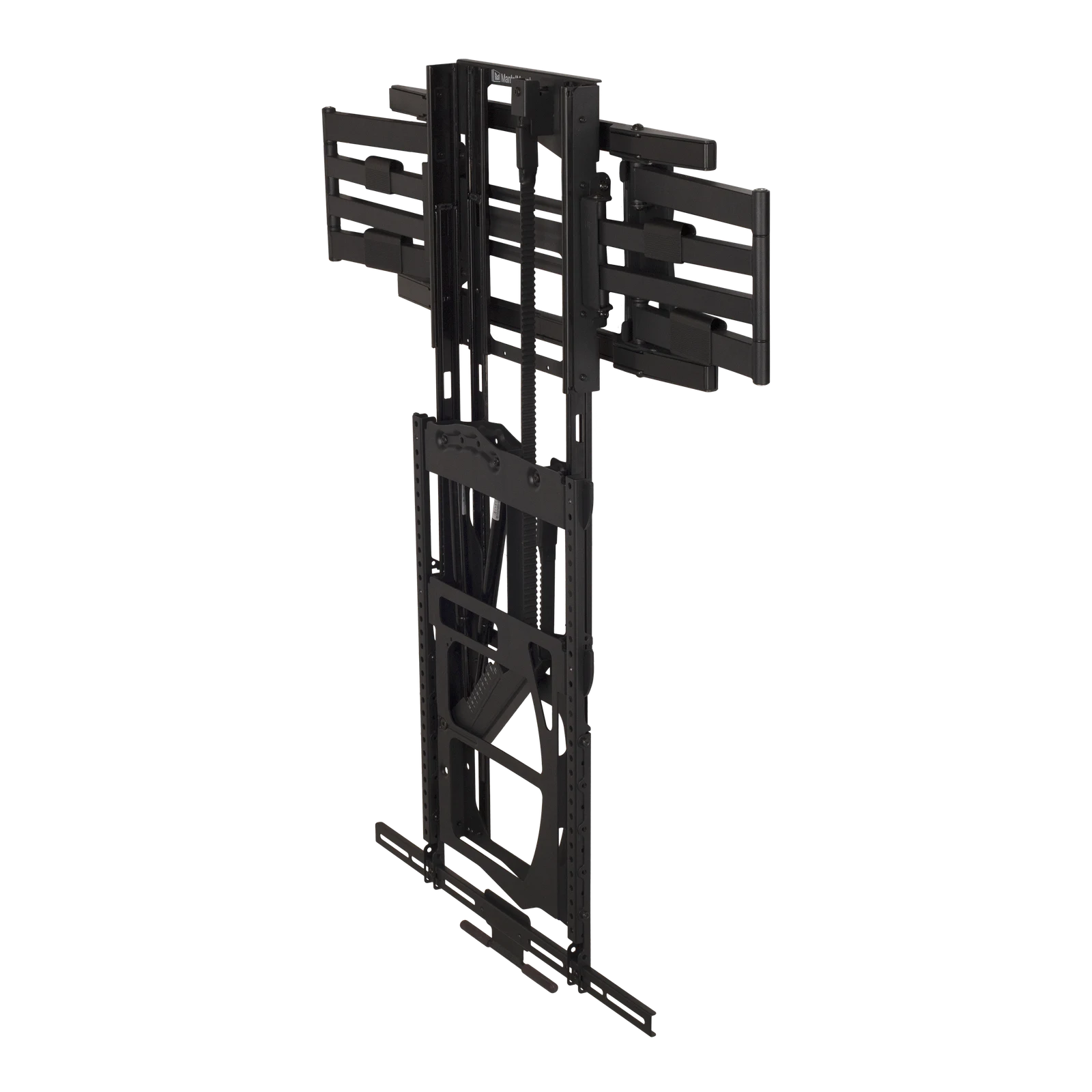

Manufacturer detail: Wall Slider: Effortlessly drop your TV vertically without any horizontal travel for precise eye-level viewing.

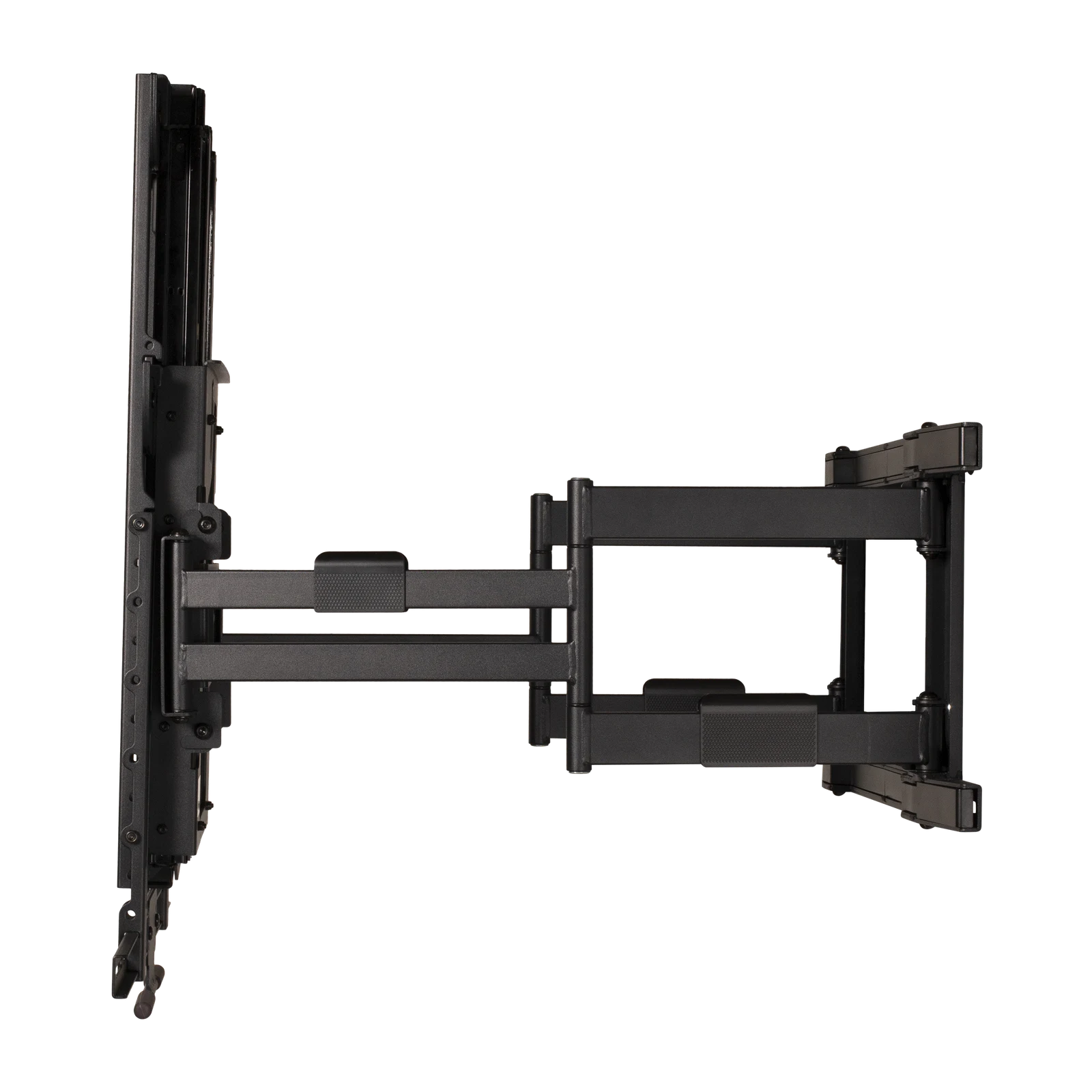

Manufacturer detail: Articulating Swivel: Enjoy horizontal swiveling without affecting the vertical position, providing maximum flexibility.
Manufacturer detail: Rock-Solid Stability: The mount's tension system holds your TV securely in any stop-anywhere position, ensuring no wobble even with larger TVs.

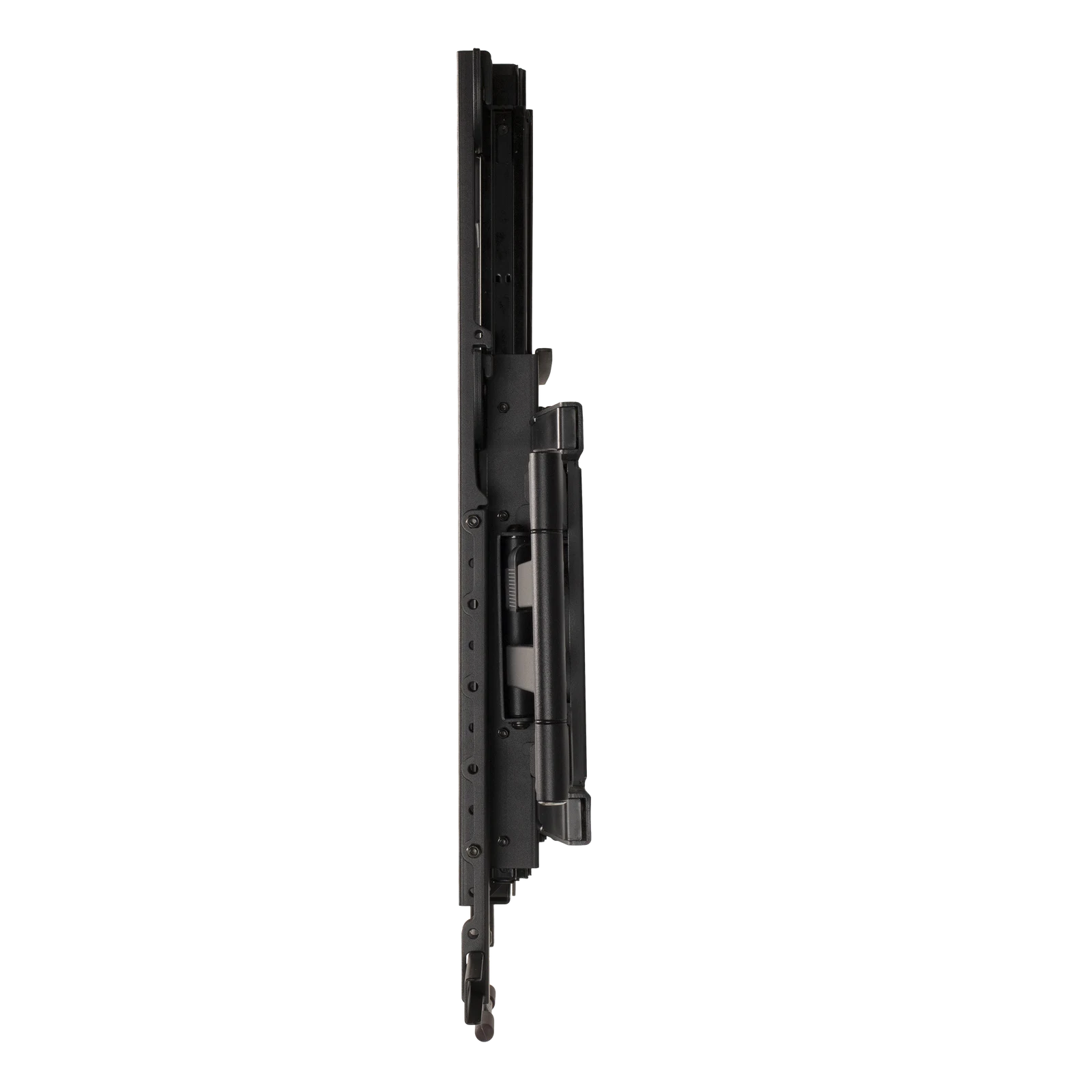

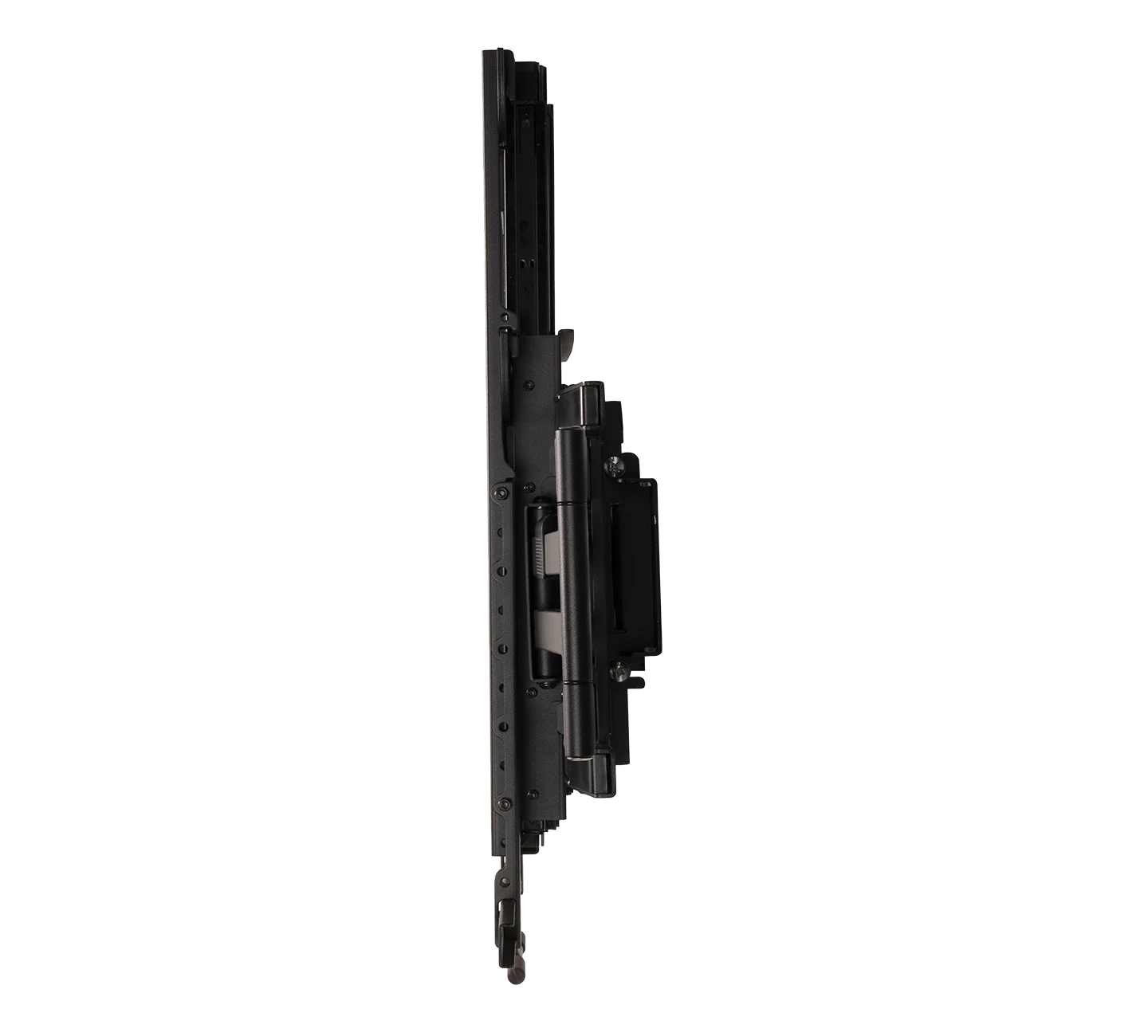

Manufacturer detail: Slim and Sleek: Despite its robust capabilities, the mount's slim profile keeps your TV close to the wall, rivaling the sleekness of traditional articulating mounts.

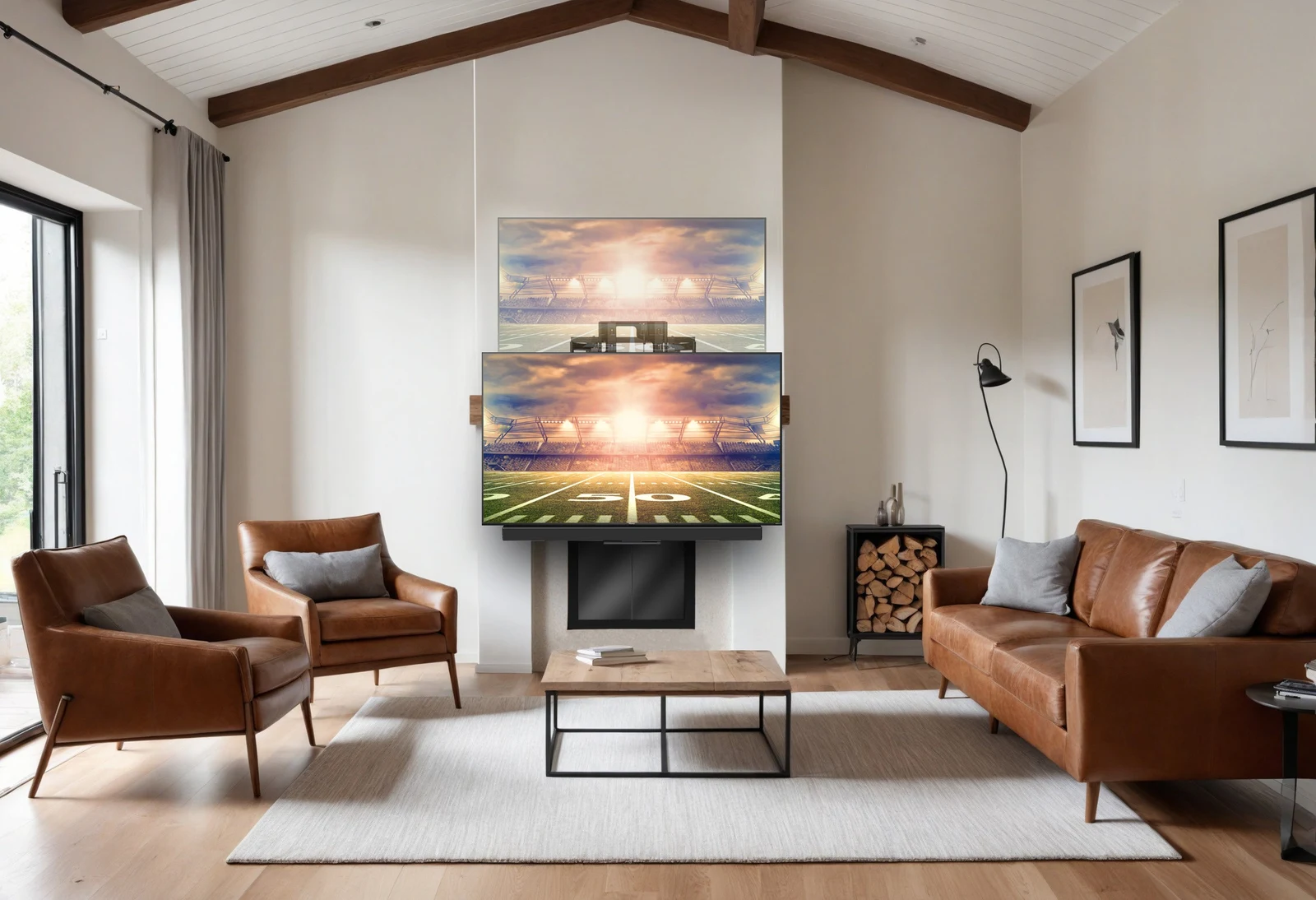

Manufacturer detail: Minimal Clearance: Position your TV within just 2 inches of the available space above your mantel, eliminating the need for excessive clearance.
Manufacturer detail: Cable Management: Includes cable routing clips for a clean, organized look.
Manufacturer detail: Integrated Features: Comes with a temperature-sensing pull-down handle, and soundbar brackets to complete your integrated setup seamlessly.
Manufacturer detail: UL Listed for Safety
Manufacturer detail: Offer your customers all the benefits of a traditional full-motion mount combined with up to 29" of independent vertical travel! The MAX1 offers our closest flush to wall distance in a non-recessed application that can position the back of the TV just 3" off the wall. MAX1's clearance requirements are simplified when mounting a TV above obstructions such as a fireplace mantel.
Manufacturer detail: Independent 22" extension
Manufacturer detail: Up to 29” of vertical travel
Manufacturer detail: Minimal Clearance
Manufacturer detail: TV Weight Capacity - up to 90 lbs.
Manufacturer detail: TV Size Minimum - 55"- 86"
Manufacturer detail: TV Size Minimum - 50" - 86" (with soundbar)
Manufacturer detail: MAX1 Specs:
Manufacturer detail: Maximum Clearance: 20" Deep Mantel
Manufacturer detail: 29 inches of vertical drop
Manufacturer detail: 40 degrees swivel left or right
Manufacturer detail: 3" flush-to-wall (our flushest mount!)
Manufacturer detail: Weight capacity: 20-90 lbs
Manufacturer detail: TV size: 50-86” with soundbar, 55-86” without soundbar
Manufacturer detail: VESA: 200 x 200 (min), 600 x 600 (max)
Manufacturer detail: MAX1 Dimensions Diagram

Included parts

For included-parts information, consult the manufacturer's exact-model documents in the Documents section below.

Restrictions and fit notes

Read the exact-model manual for TV weight, VESA, mantel clearance and wall restrictions.
TV Size Minimum - 55"- 86"
TV Size Minimum - 50" - 86" (with soundbar)
Manufacturer TV weight range: 20–90 lb. Minimum TV weight applies.
TV size: 50-86” with soundbar, 55-86” without soundbar
Guided TV mounting adds a $79 MantelMount installation surcharge to the normal size and surface charges. Hardware is separate. Verify exact TV fit, wall structure, mantel clearance and heat restrictions; no appointment or structural work is included.
